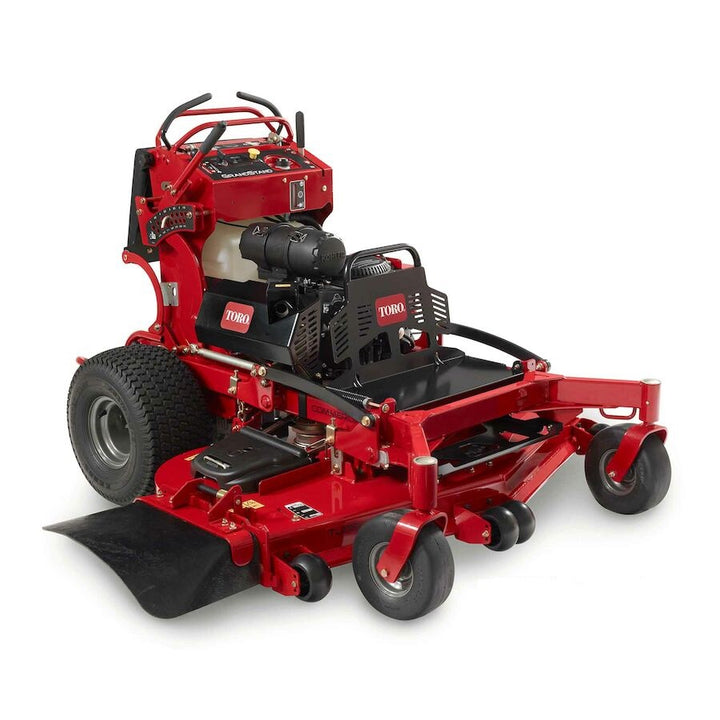

Description:

Features:

• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• A wide stance and optimal balance enhance hillside stability and control.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specification:

• Adjustable Discharge Baffle: Standard, Tools-Free
• Air Filter: Heavy-Duty Canister Air Cleaner
• Anti Scalp Wheels: Optional
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Box Dimensions: 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires: 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Foldable Operator Platform with Suspension
• Controls: Twin lever
• Deck Design: 80-grade 7-gauge 52" (132.1 cm) TURBO FORCE® w/bull-nose bumper
• Deck Material: 7 Gauge Steel
• Deck Size: 52 in / 132 cm
• Discharge Chute: Rubber
• Drive System: Unitized Pumps 10cc rev Wheel Motors 10 cir
• Drive Tires: 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
• Engine: 25 hp (18.6kW) Kohler Command EFI 747 cc
• Engine Brand: Kohler
• Engine Displacement (cc): 747 cc
• Engine Horsepower: 25 hp
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
• Front Bumper: Reinforced Bull-Nose
• Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.
• Fuel Type: Gasoline
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Hour Meter: Standard
• Hydraulic Fluid: Premium synthetic
• Product Type: Stand-On Mowers
• Product Use: Commercial
• Spindle Bearings: Maintenance-free
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Start Type: Electric
• Steering Controls: Twin Lever
• Weight: 899 lbs / 407.8 kg
